Net price:
90,03€
gross price:
110,74€
Lead time:
48h
dla wybranych sztuk: 1
| Magazyn | Ilość | Czas wysyłki |
|---|---|---|
| Produkcja | 5 pcs. | 10 dni |
| Producer: | Airwork Włochy |
| Code: | CF0110320080 |
| Cost of delivery: | From 0,00€ - see all |
Description

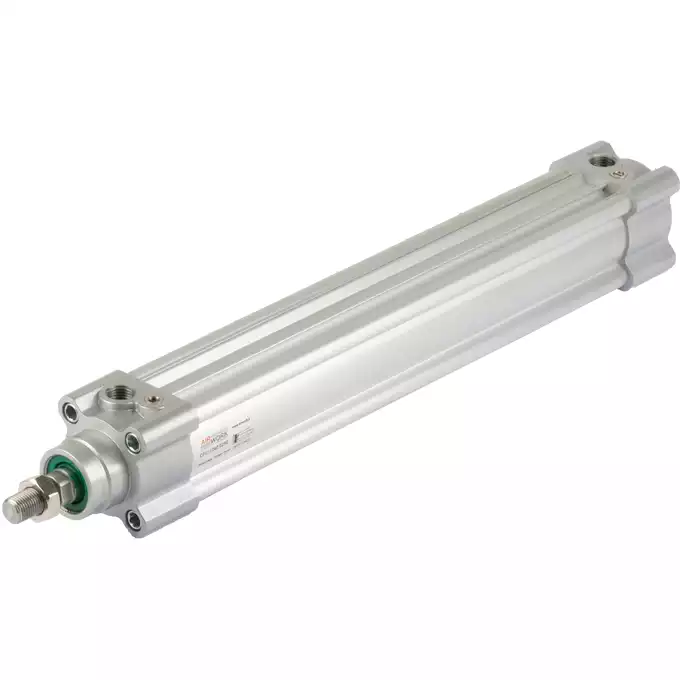

ISO15552 Series CF Double Acting Pneumatic Actuator
CF series pneumatic cylinder are manufactured in compliance with the ISO 15552 / ISO 6431 standard. ZIt ensures 100% interchangeability of the pneumatic cylinder from other manufacturers. InThey are equipped with a magnet built into the piston, enabling the use of reed position sensors (so-called BSPT - contactless signaling of the piston position).
The CF series cylinder is distinguished by a new design, a specially designed piston that guarantees indestructibility and precision of operation even after several years of intensive work. So you can read the information on a dedicated subpage.
Technical data of the pneumatic actuator:
- Maximum working pressure: 10 bar
- Operating temperature range: -20C to + 80C
- The range of working strokes from 5mm to 3000mm
- Pneumatic cylinder with shock absorption as standard.
- Aluminum piston
- Magnetic insert as standard
- Theoretical actuator force at 7 bar pressure: 56.29 kg
CODE: CF011032 .....
Category: mounting accessories for actuators
